FloCat MFE Electromagnetic Flow Meter

MFE Series

Quick ship flanged rubber-lined magmeter for water, wastewater, and more.

  • Stocked sizes 1 to 16 inches
  • ±0.75% of reading accuracy
  • Unaffected by temperature, viscosity or density
  • 4-20 mA and pulse outputs
  • Rugged carbon steel construction
  • Industry leading 3 year warranty



Need Help? Ask an Expert!

Product Details

The FloCat MFE is a complete electromagnetic flow metering system, combining both a flow sensor and transmitter into one convenient package. The MFE incorporates rugged carbon steel construction with 150# ANSI flanges creating a versatile, user-friendly flow metering system for general purpose applications involving clean, sanitary, dirty, corrosive and abrasive liquids. The system is IP65 rated for protection from dust and low pressure water jets.

The MFE is available in sizes from 1 to 24 inches for flow ranges from 0.61 to 56,402 gpm. The MFE has no parts to obstruct flow resulting in no pressure loss and the 0.75% accuracy is not affected by temperature, pressure, viscosity, density or flow profile though the highest accuracy is achieved with flow velocities greater than 1.63 ft/sec. With no moving parts, practically no maintenance is required. The chloroprene rubber sensor liner is suitable for liquid temperatures from -13 to 176°F and is compatible with most water-based fluids and many chemicals.

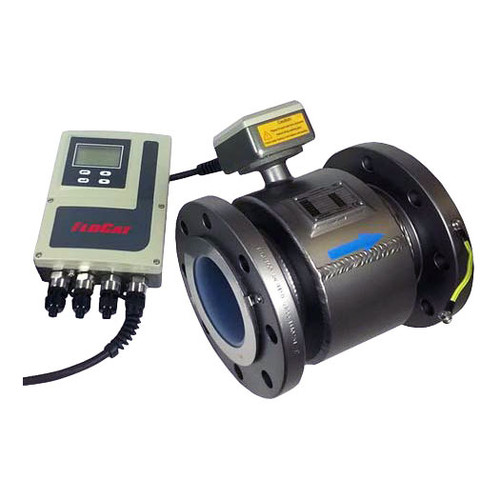

The MFE electromagnetic flow meter includes both 4-20mA and pulse output. The transmitter can be mounted either integrally to the flow sensor or remotely. The transmitter features a three-line LCD that displays the flow total, flow velocity, flow rate percent of range, and alarm settings. A four-button keypad is used to change settings.
