Precision Digital PD6310 ProVu Pulse Input Batch Controller

Part:
PD6310 ProVu

The ProVu PD6310 is a1/8 DIN pulse input (NPN, PNP, TTL, switch contact, sine wave, etc.) digital batch controller specifically designed for single and multi-stage batching applications.

  • Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave Inputs
  • Single or Multi-Stage Batch Control (Up to 8 Relays)
  • Automatic Overrun Correction
  • Rate in Units per Second, Minute, Hour, or Day
  • Automatic or Manual Batch Control
  • Onboard USB and MeterView Pro Programming Software
Availability:
2 to 3 Weeks

Price:

$589.00

Need Help? Ask an Expert!

Product Details

ProVu PD6310 Dual-Line 6-Digit Batch Controllers

The ProVu PD6310 provides excellent but simple batch control capabilities with features such as preclose relays and automatic overrun correction for more accurate batches and intuitive front panel buttons for simple operation and menu navigation.

Automatic overrun correction keeps the batch size accurate over time and with system wear. With expansion module relays, up to eight-stage batching is possible; each additional stage-batching relay has an individually programmable preclose amount. Like all ProVu meters, the PD6310 batcher includes UL/C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options.

Key Features

Intuitive Batch Control

The front panel has intuitive buttons and displays that make operating the batch controller clear and easy right out of the box. START, BATCH, and STOP buttons come setup by default for batch controller operation.

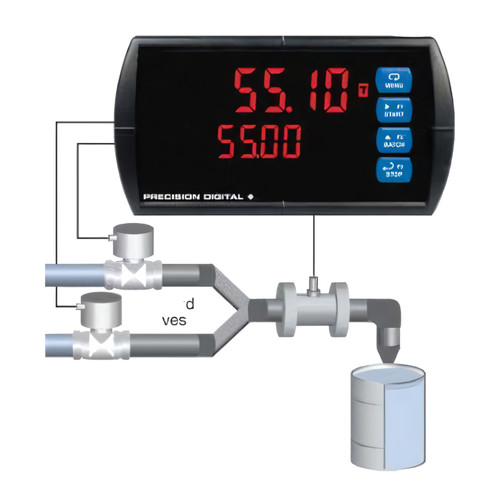

Single and Multi-Stage Batching

The ProVu can be used as a single or multi-stage batch controller. Relays assigned to the total act as batch control relays, with additional relays beyond the first including a preclose value.

Automatic Overrun Correction

The ProVu batch controller will correct for batch overrun or shortages automatically. By tracking the amount the batch was off by, the controller will automatically adjust the batch by modifying the batch relay deactivation time.
