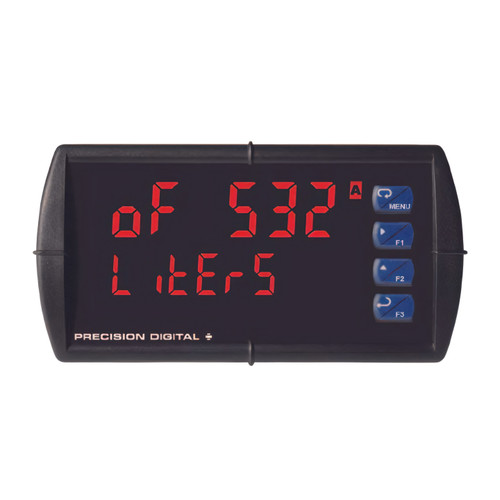

Precision Digital PD6262 ProVu Dual Input Flow Rate/Totalizer

PD6262 ProVu

The PD6262 ProVu is specifically designed to display flow rate and total from two (2) analog output (4-20 mA, 0-5 V, 1-5 V, etc.) flowmeters.

  • 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
  • Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
  • NEMA 4X, IP65 Front
  • Available with Universal 85-265 VAC or 12/24 VDC Input Power
  • 2 or 4 Relays + Isolated 4-20 mA Output Options
  • External 4-Relay, Dual Analog Output, and Digital I/O Expansion Modules
2 Weeks



Need Help? Ask an Expert!

Product Details

ProVu PD6262 Dual-Input Rate/Totalizers

The ProVu PD6262 displays signals on a dual-line, 6-digit display that is available with optional Sunbright sunlight readable LEDs. The dual-line display can be used to show both flow rates simultaneously, to alternate between the two inputs showing both the flow rate and total of each, or to show the result of math functions performed on the flow rates and totals.

The PD6262 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options. ProVu meters can be equipped with up to four internal relays, a 4-20 mA output, and Modbus RTU serial communications. The PD6262 dual-input flow rate/totalizer includes a 24 VDC power supply to drive the flowmeter and can be programmed via the front panel pushbuttons or free MeterView Pro software.

Key Features

Dual-Input Process Meter

The PD6262 has two process input channels (A & B) capable of accepting current (0-20, 4-20 mA) and voltage (±10, 0-5, 1-5, 0-10 VDC). The PD6363 accepts two pulse (e.g. ±40 mV to ±8 V), square wave (0-5 V, 0-12 V, or 0-24 V), open collector, NPN, PNP, TTL or switch contact signals. Each input is programmed separately, with independent input type selection and scaling.

Powerful Math Functions

The PD6262 uses two rate input channels (A & B) with total and grand total for each in a variety of powerful math functions designed for a wide range of flow applications. Programmable adder (P) and factor (F) constants allow each formula to be customized as needed for a specific application. The math function (C) may be displayed with units, tags, channel A or B, rate, total or grand total, and in other useful combinations.

Free USB Programming Software & Cable

The ProVu comes preloaded with free MeterView Pro programming software that connects and installs directly to your PC with a standard USB cable, also provided free with each instrument. The software will allow you to configure, monitor, and datalog a ProVu® PD6262/6363 using your PC.
