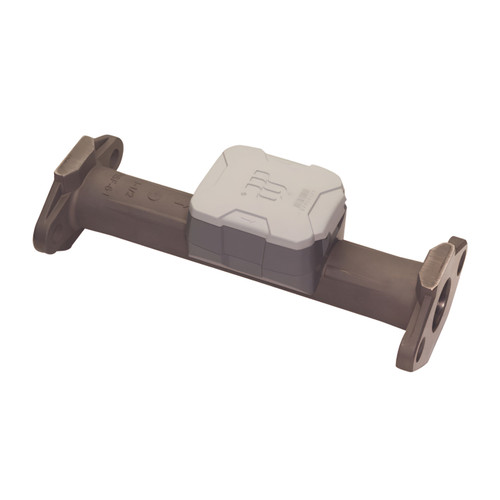

Dynasonics U500w Inline Ultrasonic Flow Meter

Part:
U500w

The Dynasonics U500w Ultrasonic flow meter uses solid-state technology in a compact, completely encapsulated housing, suitable for residential and commercial applications.

  • Simplified one-piece electronic meter and register
  • Virtually maintenance free
  • Sealed, non-removable, tamper-protected
  • Sizes 5/8 to 4 inches, 45 to 140°F
  • Flow ranges 0.1 to 1100 gpm
  • Accuracy ±1.5%

Price:

$255.00

Need Help? Ask an Expert!

Product Details

Dynasonics U500w Inline Ultrasonic Flow Meter

The U500w Ultrasonic meter uses solid-state technology in a compact, totally encapsulated, weatherproof, and UV-resistant housing, suitable for building and property management submetering applications. Electronic metering provides information—such as rate of flow and reverse flow indication—and data not typically available through traditional, mechanical meters and registers. Electronic metering eliminates measurement errors due to sand, suspended particles and pressure fluctuations.

Features

Impressive Accuracy. Delivers long-term sustained accuracy within +1.5% and a minimum extended low-flow rate that is lower than typical positive displacement meters.

Advanced Metering Information. Provides information—such as rate of flow and reverse flow indication—and data not typically available through traditional mechanical meters and registers.

Durable Design. Features a one-piece meter and register with encapsulated, weatherproof and UV-resistant housing and no moving parts, eliminating mechanical wear.

Applications

Use the U500w meter for measuring potable cold water in building/property management and industrial applications. The meter is also ideal for non-potable, reclaimed irrigation water applications or less than optimum water conditions where small particles exist.

The U500w meter complies with applicable portions of ANSI/AWWA Standard C700 and NSF/ANSI Standard 61, Annex G. There is currently no AWWA standard that specifically addresses ultrasonic meters for residential applications.
