CDI 5200 Series Compressed Air/Nitrogen Flow Meter

5200 Series

Low cost compressed air/nitrogen meter with LED display and 4-20 mA / pulse outputs for pipes 0.5 to 1.5 inches.

  • Easy to install
  • No moving parts
  • Weather resistant and surge protected
  • 4-20 mA output
  • Pulse output convertible to threshold output
  • User-configurable scaling, filtering and units of measure
  • Optional wired and wireless outputs for networking
Configured Part:
Select options
In Stock

Starting at:

Adding to cart… The item has been added
Request a Quote

Need Help? Ask an Expert!

Product Details

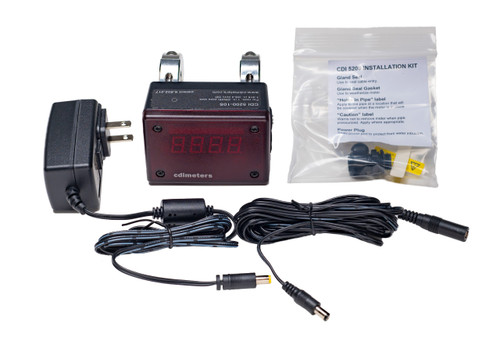

The CDI 5200 clamps onto a pipe, with two flow sensing probes projecting into the pipe through 3/16 inch drilled     holes. It seals directly to the pipe; no cutting or welding is required for installation. Because each flowmeter     is made and calibrated for a specific size of pipe, the digital display indicates flow directly, with no setup     or adjustment.

The meter measures flow by maintaining one probe warmer than the other. It calculates the mass velocity from the     amount of heat required, and then calculates the flow on the basis of pipe area. The flow rate, in scfm, is     shown on a large, four digit display; a 4-20 mA output and a pulse output permit remote display, totalizing and     data collection.


5200 Series Technical Specifications

  • Number of Rings

    2 Rings

  • Type of Pipe

    Metric Aluminum, Sch. 40 Steel, Type L Copper

  • Nominal Pipe Sizes

    1/2 in. – 1-1/2 in., 25 mm – 40 mm, DN15 – DN40

  • Accuracy

    5 percent of reading plus 1 percent of range for flows from 10 percent to 100 percent of indicated range at air temperatures between 20 and 120 degrees Fahrenheit

  • Fluids

    Compressed Air, Nitrogen

  • Operating Pressure

    200 psig maximum on Sch. 40 steel and on Type  L Copper; consult CDI for other materials and higher pressures.

  • Input Power

    250 mA at 24 Vdc

  • Output Resistance

    600 Ohms max.

  • Exposed Materials

    Stainless steel, gold, thermal epoxy and Viton (seal)

  • Ring Material


  • Display

    Four digit LED display

  • Response Time

    One second to 63 percent of change in value at flows above 30 percent of range.
