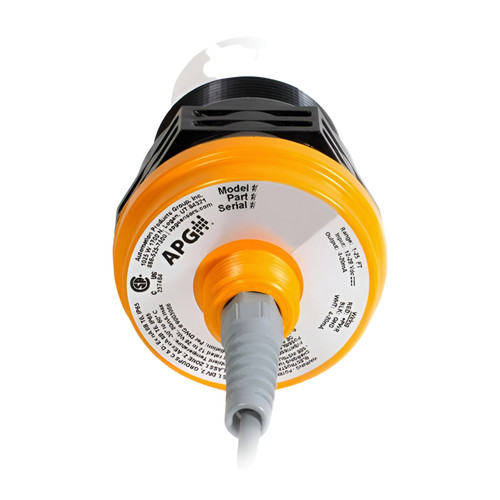

APG Ultrasonic Level Sensor LPU-2428


Made for highly configurable measurement in linear and non-linear tanks and channels, the LPU-2428 can internally calculate distance, level, flow, and volume.

  • Programmable Intelligence
  • Frequency: 69 kHz
  • Accuracy: ±0.25% of detected range
  • Resolution: 0.1 in. (2.5 mm)
  • Response Time: Dependent on output, ranges from 0.6 - 3 seconds



Need Help? Ask an Expert!

Product Details

Ultrasonic Level Transmitter with 4-20 mA Output LPU-2428

The LPU-2428 was made with intelligent software for highly configurable measurement. The sensor can calculate distance, level, flow, and volume. In addition, the sensor features a 32-point linearization table for non-linear tanks and channels.


  • CI, D1 Hazardous Locations
  • Open-channel Flow
  • Non-linear Tanks
  • Dam Tail-water Levels
  • Irrigation Channel Level or Flow
